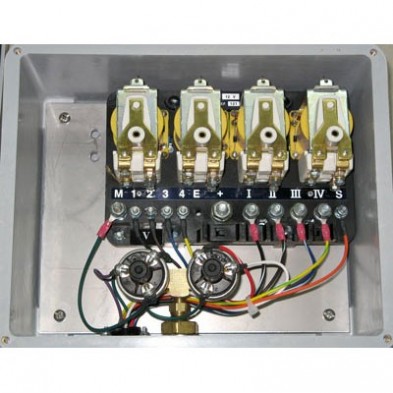

CAJA DE CONTROL, 12V ABS

TID11009

US$1,154.45

Literature

Literature


PDF TIL05041 Control Box Installation
PDF TIL33003 Control Box Command Plug Installation
PDF TID11009 Control Box Internal Wiring

Specifications

Specifications


Control box TID11009 includes the same relay card assembly provided in the Relay Box JD331121. Typical application is use in fire and rescue vehicles.

Item Includes

Item Includes


  • Grey enclosure including relay card assembly from JD331121 installed.
  • Pressure switch - 3 & 5 psi - TIG31055
  • Pressure switch - 7 & 10 psi - TIG31056
  • 4 hole heat shrink connector - TIG01017
  • Small diameter heat shrink connector - TIG01025
  • Large diameter heat shrink connector - TIG01026
  • Installed connector
  • Installed pins (female) - TIG01022
  • Mating connector - TIG01020
  • Mating connector pins (male) - TIG01021
